How to measure a downstem and find the right joint size

Finding the correct downstem size is key to getting the fit and function you want from your bong. If you’re replacing a piece or upgrading your setup, a quick measurement can save you a lot of trial and error.

This guide walks you through how to find the correct downstem size with zero guesswork.

How to Measure Downstem Size

Two measurements determine the size of any downstem: joint diameter and length. These determine how much airflow you get and how well your bong filters each hit.

Measuring the Joint Size (The Dime Method)

Here's how to measure joint size for a snug, airtight fit. Using a ruler or tape measure to measure across the top of the joint opening gives the most accurate measurement for your joint size.

However, if you don’t have a ruler handy, you can find your joint size easily using a standard pocket dime. Place a dime over the joint opening to check the fit:

• 10mm Female Joint: The dime does not fit at all and completely blocks the opening.
• 14mm Female Joint: The dime fits just about halfway inside the joint opening.
• 18mm Female Joint: The dime slides comfortably and completely inside the joint opening.

For male joints (like the connection on your flower bowl or banger), compare how much of the coin the bottom of the ground joint covers:

• 10mm Male Joint: Covers only a small fraction (less than half) of the dime.
• 14mm Male Joint: Covers just over half of the dime.
• 18mm Male Joint: Covers the entire dime completely.

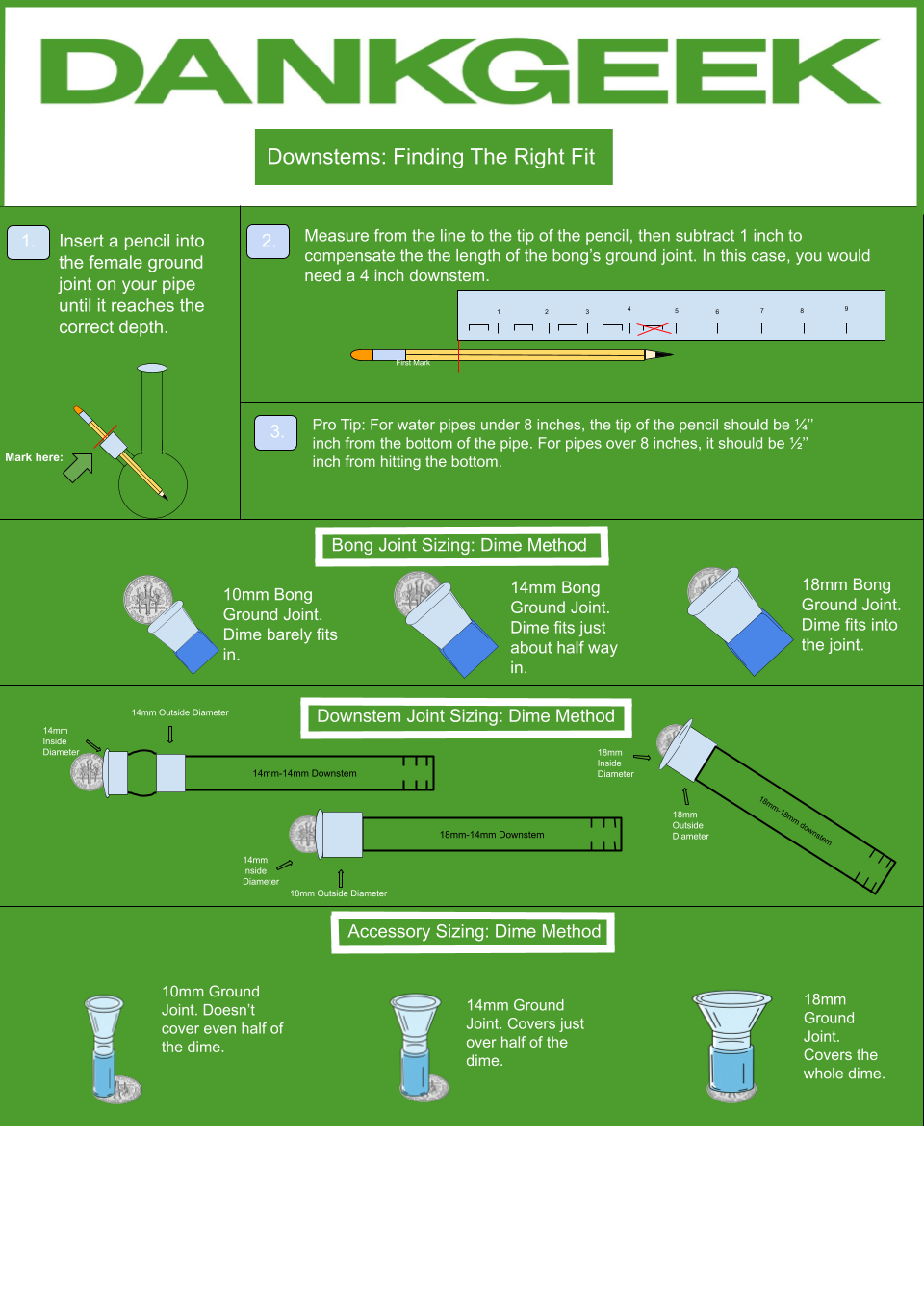

You can also use a penny like we've shown above. A penny will be slightly larger, but you can still use the same concepts to identify your joint size and gender.

Measuring the Downstem Length (The Pencil Method)

If you don't have an old downstem to measure, you can find your ideal length using a standard pencil and a ruler:

1. Insert a pencil or a similar straight, thin object into the empty bong joint until the tip touches the bottom of the glass. Then pull it up a quarter inch (if your water pipe is larger than 8 inches, then pull the pencil half an inch from the glass)
2. Mark the exact spot on the pencil where it exits the top of the glass bong joint.
3. Remove the pencil and use a ruler to measure from the bottom tip to your marked line.
4. Subtract 1 inch from that measurement. This accounts for the length of the bong's ground joint collar. The remaining number is your ideal downstem length.

Once you have your measurement, test the fit of your new piece. The downstem should sit snugly without wobbling, leaving no gaps for air to escape, and sit roughly 1 to 2 inches below your waterline without touching the bottom of the glass.

The Different Downstem Sizes

The overall length of your downstem affects both the airflow resistance and how effectively your water filtration works. Here is how standard sizes break down:

Joint Diameter

Bong joints are available in male and female configurations, with standard sizes being 10mm, 14mm, and 18mm (sometimes referred to as 19mm):

• 10mm: Found on mini bongs, micro rigs, and bubblers. Designed for smaller, flavor-focused hits and tighter airflow.
• 14mm: The industry standard for mid-sized bongs. Offers a perfect balance of airflow, chug, and joint accessory compatibility.
• 18mm: Best for large bongs with high-volume chambers. Provides wide-open, unrestricted airflow for massive, heavy pulls.

Downstem Length

A longer downstem provides a larger path and more physical surface area for smoke filtration, yielding cooler, smoother hits:

• Short (2.5 to 4 inches): Made for small beakers, pocket rigs, and compact straight tubes. Designed to sit just beneath the waterline.
• Medium (4 to 6.5 inches): Fits most standard beaker bongs and multi-chamber setups. This is the most common replacement range.
• Long (6.5 to 10 inches): Ideal for exceptionally tall tubes or deep straight-shot bongs that require maximum downstem reach.

Last Toke

And there you have it! Finding the perfect downstem length doesn’t have to be complicated. With a little measuring and testing, you’ll be all set to enjoy smooth, satisfying hits every time.

Just remember, a good fit makes all the difference, so don’t skip the testing step. Now, grab your favorite strain, set up your bong, and get ready to chill.

FAQs

"What Are The Benefits Of Using A Downstem?"

A downstem makes your hits smoother and cooler by diffusing smoke through the water. As smoke passes through the slitted tip, it breaks up into tiny bubbles, maximizing surface area contact with the water. This actively filters out ash and cools the temperature down so your throat doesn't burn on the exhale.

"Should The Downstem Touch The Bottom Of The Bong Chamber?"

No, your downstem should never touch the bottom of your glass. It should hover approximately 0.25 to 0.5 inches above the bottom of the chamber. If a downstem is too long and presses against the base, it restricts airflow, builds up heavy suction, and can easily chip or crack your bong from the physical pressure.

"How Do I Determine The Gender Of My Bong Joint?"

Bong joints are straightforward. Male joints have a tapered, frosted exterior and slide *inside* other pieces. Female joints have a wider, flared opening designed to receive male pieces. Standard downstems have a female joint at the top (to hold your bowl) and a male joint on the main body (to slide into your bong's female joint).

"What If I Have The Wrong Joint Size?"

If you accidentally purchased a downstem or bowl that doesn't fit your bong, you don't have to throw it away. You can use standard glass adapters. Adapters act as simple bridges that convert size (such as 14mm to 18mm) or change joint gender instantly for an airtight seal.

"Where Can I Find High-Quality Downstems?"

At DankGeek, we carry a wide collection of replacement glass downstems, silicone downstems, and adjustable multi-fit pieces designed to fit standard water pipes perfectly. Explore our collection of premium attachments to restore or upgrade your daily setup.
